KP/DB Air Curtains
- Homepage
- Products
- Air curtains
- KP/DB Air Curtains
Air curtains for doors and gates are used for protection against uncontrolled air intake at doors, gates and outer constructional holes in shops, department stores, workshops, storerooms etc. .
They are intended for deriving and heating air from inside of a room. They may also be used without air heating as so called “cold” curtains.
The curtains are fitted for installation at doors, gates at the height of 2,0 ÷ 4,0m.
They may be positioned above gates (horizontal operation position) or at the gates sides (vertical operation position).
Several curtains in a row may be used with bigger heights and widths.
On demand KP/DB air curtains could be delivered with housing made for mounting in false ceiling.
PRODUCT DESCRIPTION
Curtains consist of:
- housing made of painted steel sheet metal with slot on the whole length
- electric or water heater
- centrifugal, two-sidedly sucking fans (2 or 3)
The curtains are suspended from the ceiling of a room with use of thredded bars mounted to the housing. The curtains are offered in two sizes and six types differing in number and size of fans and length of outflow air slot.
Electric heater is provided with protection against exceeding the max. operation temperature.
WORKING CONDITIONS
The water heaters are supplied with water with the temperature of 150OC or lower and the pressure of up to 1,5MPa.
Electric heater feeding is three-phase 400 V.
During selection of the curtains air speed at the floor should be taken into consideration. The speed should not be lower than 3m/s.
Technical data
-

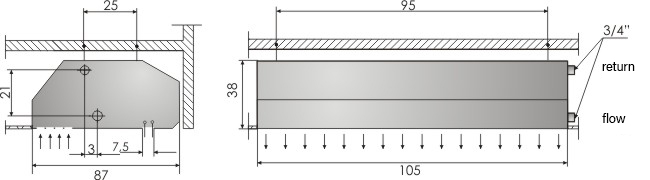

Dimensions
'/%3E%3ClinearGradient id='lazy_gradient'%3E%3Cstop offset='0%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3Cstop offset='50%25' stop-color='rgba(233, 233, 233, 0.2)' /%3E%3Cstop offset='100%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3C/linearGradient%3E%3Crect class='lazy-animate' width='650' height='180' fill='url(%23lazy_gradient)'/%3E%3C/svg%3E "kpdb-1-105-w-p")
Parameters of fan in curtain
Number of fans
2
Voltage [V]
230
Motor power [kW]
0,074
Current [A]
1,0
Revolutions [rpm]
960
Air flow of the curtain with the water heater
Air flow [m3/h]
2 300
Thermal power [kW], outflow air temperature [OC]
and resistance of water flow [kPa]Water temp.
[OC]
Inflow air temp [OC]
kW
OC
kPa
90/70
5
17,4
26
1,8
10
15,8
29
1,5
15
14,2
33
1,2
80/60
5
14,4
22
1,2
10
12,9
25
1,0
15
11,4
29
0,8
70/50
5
11,4
19
0,8
10
10,0
22
0,6
15
8,7
26
0,5
60/40
5
8,7
16
0,5
10
7,4
19
0,4
15
6,1
22
0,3
Operational noise level [dB(A)]
Noise level at distance of 1m
63
Noise level at distance of 3m
59 Curtain weight
Weight [kg]
65
-

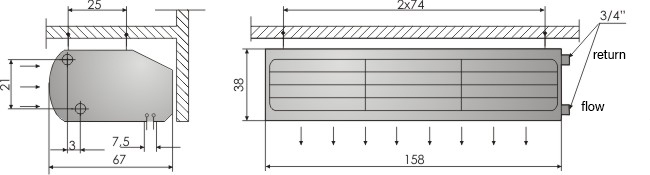

Dimensions
'/%3E%3ClinearGradient id='lazy_gradient'%3E%3Cstop offset='0%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3Cstop offset='50%25' stop-color='rgba(233, 233, 233, 0.2)' /%3E%3Cstop offset='100%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3C/linearGradient%3E%3Crect class='lazy-animate' width='650' height='203' fill='url(%23lazy_gradient)'/%3E%3C/svg%3E "kpdb-1-105-z-p")
Parameters of fan in curtain
Number of fans
2
Voltage [V]
230
Motor power [kW]
0,074
Current [A]
1,0
Revolutions [rpm]
960
Thermal power and air flow of the curtain with the electric heaters Air flow [m3/h]
2 300
Thermal power levels [kW] 9 Operational noise level [dB(A)]
From distance of 1m
63 From distance of 3m
59
Curtain weight
Weight [kg]
66
-

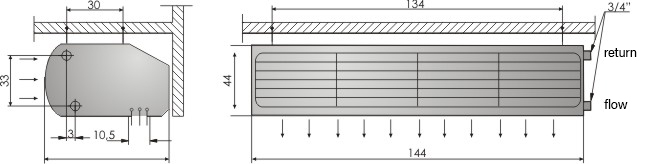

Dimensions
'/%3E%3ClinearGradient id='lazy_gradient'%3E%3Cstop offset='0%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3Cstop offset='50%25' stop-color='rgba(233, 233, 233, 0.2)' /%3E%3Cstop offset='100%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3C/linearGradient%3E%3Crect class='lazy-animate' width='650' height='204' fill='url(%23lazy_gradient)'/%3E%3C/svg%3E "kpdb-1-105-z")
Parameters of fans in curtain
Number of fans
2
Voltage [V]
230
Motor power [kW]
0,074
Current [A]
1,0
Revolutions [rpm]
960
Air flow [m3/h]
2 300
Operational noise level [dB(A)]
From distance of 1m 63 From distance of 3m
59 Curtain weight
Weight [kg]
58
-

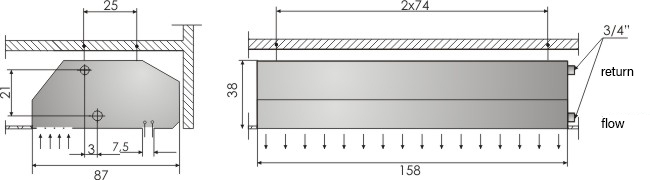

Dimensions
'/%3E%3ClinearGradient id='lazy_gradient'%3E%3Cstop offset='0%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3Cstop offset='50%25' stop-color='rgba(233, 233, 233, 0.2)' /%3E%3Cstop offset='100%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3C/linearGradient%3E%3Crect class='lazy-animate' width='650' height='175' fill='url(%23lazy_gradient)'/%3E%3C/svg%3E "kpdb-1-158-w")
Parameters of fan in curtain
Number of fans
3
Voltage [V]
230
Motor power [kW]
0,074
Current [A]
1,0
Revolutions [rpm]
960
Air flow of the curtain with the water heater
Air flow [m3/h]
3 450
Thermal power [kW], outflow air temperature [OC]
and resistance of water flow [kPa]Water temp.
[OC]
Inflow air temp [OC]
kW
OC
kPa
90/70
5
30,9
30
2,1
10
28,1
33
7,7
15
25,4
36
6,3
80/60
5
25,0
26
6,4
10
22,9
29
5,1
15
20,4
32
4,0
70/50
5
20,0
21
4,1
10
18,0
25
3,1
15
15,6
28
2,3
60/40
5
15,7
17
2,4
10
13,3
21
1,7
15
11,0
24
1,1
Operational noise level [dB(A)]
Noise level at distance of 1m
64
Noise level at distance of 3m
60 Curtain weight
Weight [kg]
94
-
Dimensions
Parameters of fan in curtain
Number of fans
3
Voltage [V]
230
Motor power [kW]
0,074
Current [A]
1,0
Revolutions [rpm]
960
Thermal power and air flow of the curtain with the electric heaters Air flow [m3/h]
3 450
Thermal power levels [kW] 13,5 Operational noise level [dB(A)]
From distance of 1m
64 From distance of 3m
60
Curtain weight
Weight [kg]
95
-
Dimensions
Parameters of fans in curtain
Number of fans
3
Voltage [V]
230
Motor power [kW]
0,074
Current [A]
1,0
Revolutions [rpm]
960
Air flow [m3/h]
3 450
Operational noise level [dB(A)]
From distance of 1m 64 From distance of 3m
60 Curtain weight
Weight [kg]
83
-
Dimensions
Parameters of fan in curtain
Number of fans
2
Voltage [V]
230
Motor power [kW]
0,15
Current [A]
1,5
Revolutions [rpm]
1350
Air flow of the curtain with the water heater
Air flow [m3/h]
2700
Thermal power [kW], outflow air temperature [OC]
and resistance of water flow [kPa]Water temp.
[OC]
Inflow air temp [OC]
kW
OC
kPa
90/70
5
19,2
24
2,2
10
17,4
28
1,8
15
15,7
31
1,5
80/60
5
15,8
21
1,5
10
14,1
25
1,2
15
12,5
28
1,0
70/50
5
12,6
18
0,9
10
11,0
21
0,8
15
9,5
25
0,5
60/40
5
9,6
15
0,6
10
8,1
18
0,4
15
6,7
22
0,3
Operational noise level [dB(A)]
Noise level at distance of 1m
66
Noise level at distance of 3m
62 Curtain weight
Weight [kg]
60
-
Dimensions
Parameters of fan in curtain
Number of fans
2
Voltage [V]
230
Motor power [kW]
0,15
Current [A]
1,5
Revolutions [rpm]
1350
Thermal power and air flow of the curtain with the electric heaters Air flow [m3/h]
2 300
Thermal power levels [kW] 9 Operational noise level [dB(A)]
From distance of 1m
66 From distance of 3m
62
Curtain weight
Weight [kg]
53
-
Dimensions
Parameters of fans in curtain
Number of fans
2
Voltage [V]
230
Motor power [kW]
0,15
Current [A]
1,5
Revolutions [rpm]
1350
Air flow [m3/h]
2 300
Operational noise level [dB(A)]
From distance of 1m 66 From distance of 3m
62 Curtain weight
Weight [kg]
45
-
Dimensions
Parameters of fan in curtain
Number of fans
3
Voltage [V]
230
Motor power [kW]
0,15
Current [A]
1,5
Revolutions [rpm]
1350
Air flow of the curtain with the water heater
Air flow [m3/h]
4 050
Thermal power [kW], outflow air temperature [OC]
and resistance of water flow [kPa]Water temp.
[OC]
Inflow air temp [OC]
kW
OC
kPa
90/70
5
34,0
28
11,3
10
30,0
32
9,3
15
27,9
35
7,6
80/60
5
28,2
24
7,7
10
25,2
28
6,1
15
22,3
31
4,8
70/50
5
22,5
20
4,9
10
19,7
24
3,8
15
17,0
27
2,8
60/40
5
17,2
17
2,8
10
14,6
20
2,0
15
12,1
23
1,4
Operational noise level [dB(A)]
Noise level at distance of 1m
67
Noise level at distance of 3m
63 Curtain weight
Weight [kg]
85
-
Dimensions
Parameters of fan in curtain
Number of fans
3
Voltage [V]
230
Motor power [kW]
0,15
Current [A]
1,5
Revolutions [rpm]
1350
Thermal power and air flow of the curtain with the electric heaters Air flow [m3/h]
4 050
Thermal power levels [kW] 13,5 Operational noise level [dB(A)]
From distance of 1m
67 From distance of 3m
63
Curtain weight
Weight [kg]
86
-
Dimensions
Parameters of fans in curtain
Number of fans
3
Voltage [V]
230
Motor power [kW]
0,15
Current [A]
1,5
Revolutions [rpm]
1350
Air flow [m3/h]
4 050
Operational noise level [dB(A)]
From distance of 1m 67 From distance of 3m
63 Curtain weight
Weight [kg]
74
-
Dimensions
'/%3E%3ClinearGradient id='lazy_gradient'%3E%3Cstop offset='0%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3Cstop offset='50%25' stop-color='rgba(233, 233, 233, 0.2)' /%3E%3Cstop offset='100%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3C/linearGradient%3E%3Crect class='lazy-animate' width='650' height='164' fill='url(%23lazy_gradient)'/%3E%3C/svg%3E "kpdb-2-144-w")
Parameters of fan in curtain
Number of fans
2
Voltage [V]
230
Motor power [kW]
0,45
Current [A]
2,0
Revolutions [rpm]
790
Air flow of the curtain with the water heater
Air flow [m3/h]
5 400
Thermal power [kW], outflow air temperature [OC]
and resistance of water flow [kPa]Water temp.
[OC]
Inflow air temp [OC]
kW
OC
kPa
90/70
5
45,1
28
7,9
10
41,4
32
6,5
15
37,1
35
5,3
80/60
5
37,1
24
5,4
10
33,4
27
4,3
15
29,7
31
3,4
70/50
5
29,9
20
3,5
10
26,2
24
2,6
15
22,6
27
2,0
60/40
5
22,8
17
2,0
10
19,3
20
1,5
15
16,0
23
1,0
Operational noise level [dB(A)]
Noise level at distance of 1m
65
Noise level at distance of 3m
61 Curtain weight
Weight [kg]
101
-
Dimensions
'/%3E%3ClinearGradient id='lazy_gradient'%3E%3Cstop offset='0%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3Cstop offset='50%25' stop-color='rgba(233, 233, 233, 0.2)' /%3E%3Cstop offset='100%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3C/linearGradient%3E%3Crect class='lazy-animate' width='650' height='192' fill='url(%23lazy_gradient)'/%3E%3C/svg%3E "kpdb-2-144-z")
Parameters of fan in curtain
Number of fans
2
Voltage [V]
230
Motor power [kW]
0,45
Current [A]
2,0
Revolutions [rpm]
790
Thermal power and air flow of the curtain with the electric heaters Air flow [m3/h]
5 400
Thermal power levels [kW] 18 Operational noise level [dB(A)]
From distance of 1m
65 From distance of 3m
61
Curtain weight
Weight [kg]
101
-
Dimensions
Parameters of fans in curtain
Number of fans
2
Voltage [V]
230
Motor power [kW]
0,45
Current [A]
2,0
Revolutions [rpm]
790
Air flow [m3/h]
5 400
Operational noise level [dB(A)]
From distance of 1m 65 From distance of 3m
61 Curtain weight
Weight [kg]
88
-
Dimensions
'/%3E%3ClinearGradient id='lazy_gradient'%3E%3Cstop offset='0%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3Cstop offset='50%25' stop-color='rgba(233, 233, 233, 0.2)' /%3E%3Cstop offset='100%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3C/linearGradient%3E%3Crect class='lazy-animate' width='650' height='169' fill='url(%23lazy_gradient)'/%3E%3C/svg%3E "kpdb-2-210-w")
Parameters of fan in curtain
Number of fans
3
Voltage [V]
230
Motor power [kW]
0,45
Current [A]
2,0
Revolutions [rpm]
790
Air flow of the curtain with the water heater
Air flow [m3/h]
8 100
Thermal power [kW], outflow air temperature [OC]
and resistance of water flow [kPa]Water temp.
[OC]
Inflow air temp [OC]
kW
OC
kPa
90/70
5
62,8
26
3,0
10
57,1
30
2,4
15
51,5
33
1,9
80/60
5
51,9
23
2,0
10
46,4
26
1,6
15
41,2
30
1,3
70/50
5
41,5
19
1,3
10
36,3
23
0,9
15
31,4
26
0,8
60/40
5
31,6
16
0,8
10
26,7
19
0,6
15
22,2
23
0,4
Operational noise level [dB(A)]
Noise level at distance of 1m
66
Noise level at distance of 3m
62 Curtain weight
Weight [kg]
143
-
Dimensions
Parameters of fan in curtain
Number of fans
3
Voltage [V]
230
Motor power [kW]
0,45
Current [A]
2,0
Revolutions [rpm]
790
Thermal power and air flow of the curtain with the electric heaters Air flow [m3/h]
8 100
Thermal power levels [kW] 27 Operational noise level [dB(A)]
From distance of 1m
66 From distance of 3m
62
Curtain weight
Weight [kg]
143
-
Dimensions
'/%3E%3ClinearGradient id='lazy_gradient'%3E%3Cstop offset='0%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3Cstop offset='50%25' stop-color='rgba(233, 233, 233, 0.2)' /%3E%3Cstop offset='100%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3C/linearGradient%3E%3Crect class='lazy-animate' width='650' height='191' fill='url(%23lazy_gradient)'/%3E%3C/svg%3E "kpdb-2-210-z")
Parameters of fans in curtain
Number of fans
3
Voltage [V]
230
Motor power [kW]
0,45
Current [A]
2,0
Revolutions [rpm]
790
Air flow [m3/h]
8 100
Operational noise level [dB(A)]
From distance of 1m 66 From distance of 3m
62 Curtain weight
Weight [kg]
124
