Air curtains are used for protection against outer air inflow at doors and construction outer holes in shops, department stores, workshops etc.
They are fitted for deriving and heating air from inside a room.
The curtains are fitted for installation at doors high up to 2,5 m.
PRODUCT DESCRIPTION
The curtains consist of:
- housing made of steel sheet
- electric or water heater
- fan
The curtains are made in three lengths 104, 156 and 200 cm.
WORKING CONDITIONS
Water heaters are fed with water of 150OC or lower temperature and pressure of 1,5Mpa.
Electric heater power suppply is three-phase 400V. Curtains with 100cm length could be equipped with single phase electric heater with thermal power of 3kW.
The heaters are equipped with protection against exceeding max. temperature of heaters operation.
Technical data
-

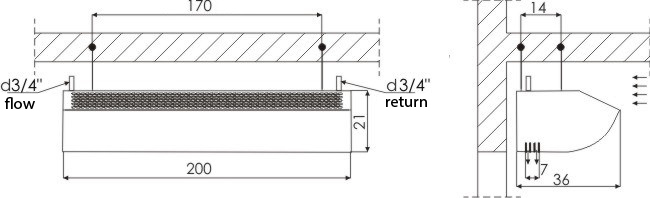

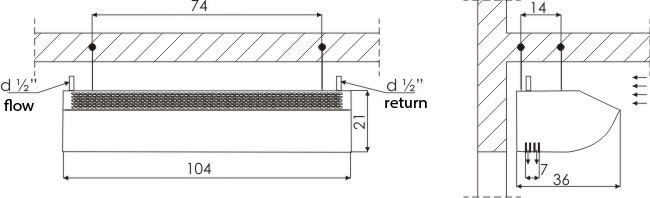

Dimensions
'/%3E%3ClinearGradient id='lazy_gradient'%3E%3Cstop offset='0%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3Cstop offset='50%25' stop-color='rgba(233, 233, 233, 0.2)' /%3E%3Cstop offset='100%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3C/linearGradient%3E%3Crect class='lazy-animate' width='650' height='198' fill='url(%23lazy_gradient)'/%3E%3C/svg%3E "smart-104-w_wym")
Parameters of fan in curtain
Voltage [V]
230
Motor power [kW]
0,130
Current [A]
0,60
Revolutions [rpm]
1250
Air flow of the curtain with the water heater
Air flow [m3/h]
1400
Thermal power [kW], outflow air temperature [OC]
and resistance of water flow [kPa]Water temp.
[OC]
Inflow air temp.[OC]
kW
OC
kPa
90/70
5
11,5
28
2,1
10
10,4
31
1,7
15
9,4
34
1,4
20
8,5
38
1,1
80/60
5
9,5
24
1,6
10
8,5
27
1,3
15
7,6
30
1,0
20
6,7
34
0,8
70/50
5
7,7
20
1,3
10
6,7
23
1,0
15
5,8
27
0,8
20
5,0
30
0,6
60/40
5
5,9
17
0,7
10
5,0
20
0,5
15
4,2
23
0,4
20
3,4
28
0,3
Operational noise level [dB(A)]
Selected speed
From distance of 1m
From distance of 3m 3
61
58
2
56
53
1
49
46 Curtain weight
Weight [kg]
25
-
Dimensions
'/%3E%3ClinearGradient id='lazy_gradient'%3E%3Cstop offset='0%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3Cstop offset='50%25' stop-color='rgba(233, 233, 233, 0.2)' /%3E%3Cstop offset='100%25' stop-color='rgba(233, 233, 233, 0.05)' /%3E%3C/linearGradient%3E%3Crect class='lazy-animate' width='650' height='209' fill='url(%23lazy_gradient)'/%3E%3C/svg%3E "smart-104-z_wym")
Parameters of fan in curtain
Voltage [V]
230
Motor power [kW]
0,130
Current [A]
0,60
Revolutions [rpm]
1250
Thermal power and air flow of the curtain with the electric heaters Air flow [m3/h]
1750
Thermal power levels [kW] 1,5 / 3 / 4,5 1 / 2 / 3*
* – single phase electric heater
Operational noise level [dB(A)]
Selected speed
From distance of 1m
From distance of 3m 3
61
58
2
56
53
1
49
46 Curtain weight
Weight [kg]
29
-
Dimensions
Parameters of fan in curtain
Voltage [V]
230
Motor power [kW]
0,130
Current [A]
0,60
Revolutions [rpm]
1250
Air flow [m3/h]
1850
Operational noise level [dB(A)]
Selected speed
From distance of 1m
From distance of 3m 3
61
58
2
56
53
1
49
46 Curtain weight
Weight [kg]
21
-
Dimensions
Parameters of fan in curtain
Voltage [V]
230
Motor power [k]
0,130
Current [A]
0,60
Revolutions [rpm]
1250
Air flow of the curtain with the water heater
Air flow [m3/h]
2300
Thermal power [kW], outflow air temperature [oC]
and resistance of water flow [kPa]Water temp.
[OC]
Inflow air temp.[OC]
kW
OC
kPa
90/70
5
19,4
29
8,6
10
17,6
32
7,0
15
15,9
35
5,5
20
14,3
38
5,0
80/60
5
16,2
25
5,9
10
14,4
28
4,5
15
12,5
31
3,8
20
11,3
34
3,0
70/50
5
13,0
21
3,9
10
11,4
24
3,0
15
9,9
27
2,3
20
8,4
31
1,6
60/40
5
10,1
17
2,6
10
8,5
20
1,7
15
7,1
24
1,0
20
5,7
27
1,0
Operational noise level [dB(A)]
Selected speed
From distance of 1m
From distance of 3m 3
61
58
2
56
53
1
48
45 Curtain weight
Weight [kg]
35
-
Dimensions
Parameters of fan in curtain
Voltage [V]
230
Motor power [kW]
0,130
Current [A]
0,60
Revolutions [rpm]
1250
Thermal power and air flow of the curtain with the electric heaters Air flow [m3/h]
2800
Thermal power levels [kW] 3 / 6 / 9 Operational noise level [dB(A)]
Selected speed
From distance of 1m
From distance of 3m 3
61
58
2
56
53
1
48
45 Curtain weight
Weight [kg]
37
-
Dimensions
Parameters of fan in curtain
Voltage [V]
230
Motor power [kW]
0,130
Current [A]
0,60
Revolutions [rpm]
1250
Air flow [m3/h]
3100
Operational noise level [dB(A)]
Selected speed
From distance of 1m
From distance of 3m 3
61
58
2
56
53
1
48
45 Curtain weight
Weight [kg]
29
-
Dimensions
Parameters of fan in curtain
Voltage [V]
230
Motor power [kW]
0,130×2
Current [A]
0,60×2
Revolutions [rpm]
1250
Air flow of the curtain with the water heater
Air flow [m3/h]
2900
Thermal power [kW], outflow air temperature [oC]
and resistance of water flow [kPa]Water temp.
[OC]
Inflow air temp.[OC]
kW
OC
kPa
90/70
5
23,5
27
1,7
10
21,5
31
1,3
15
19,4
34
1,1
20
17,4
38
1,0
80/60
5
19,5
24
1,5
10
17,6
27
1,1
15
15,6
30
0,9
20
13,8
34
0,7
70/50
5
15,7
20
1,1
10
13,9
24
0,9
15
12,7
27
0,7
20
10,3
30
0,5
60/40
5
12,1
17
0,7
10
10,4
20
0,4
15
8,6
23
0,3
20
7,0
27
0,2
Operational noise level [dB(A)]
Selected speed
From distance of 1m
From distance of 3m 3
62
59
2
57
54
1
51
48 Curtain weight
Weight [kg]
44
-
Dimensions
Parameters of fan in curtain
Voltage [V]
230
Motor power [kW]
0,130×2
Current [A]
0,60×2
Revolutions [rpm]
1250
Thermal power and air flow of the curtain with the electric heaters
Air flow [m3/h]
3620
Thermal power levels [kW] 4 / 8 / 12 * – single phase electric heater
Operational noise level [dB(A)]
Selected speed
From distance of 1m
From distance of 3m 3
62
59
2
57
54
1
51
48 Curtain weight
Weight [kg]
46
-
Dimensions
Parameters of fan in curtain
Voltage [V]
230
Motor power [kW]
0,130×2
Current [A]
0,60×2
Revolutions [rpm]
1250
Air flow [m3/h]
3900
Operational noise level [dB(A)]
Selected speed
From distance of 1m
From distance of 3m 3
62
59
2
57
54
1
51
48 Curtain weight
Weight [kg]
38
