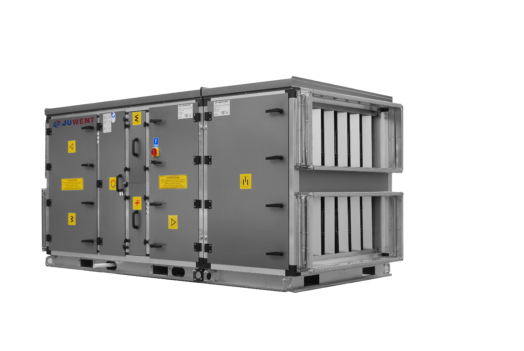

OPTIMAX-ROTO is a range of energy efficient compact air handling units that incorporating the latest thermal and ventilation technology. The units consist of a base section, a water or DX cooling coil section, and a section for sound attenuators.
The high-efficiency rotary heat exchanger enables heat energy to be recovered from the extract air with up to 90% efficiency. Additionally, the high-efficiency fans with EC motors are used to minimise power consumption. The double-skin panels are 50mm thick and insulated with mineral wool to reduce heat loss to the environment. They also provide excellent acoustic insulation for the working fans.

The OPTIMAX-CROSS air handling units come fully pre-wired with a built-in, pre-configured control panel installed in a basic section. Additionally, air shut-off dampers are fitted inside the basic section to the intake and discharge.





Technical data Product Selection Document downloads

OPTIMAX-ROTO

  • sizes and airflow ranges
  • heat recovery efficiency up to 90%
  • AC or EC motors
  • PLUG & PLAY controls
  • certificates
  • available versions
  • 3D BIM models

  • ROTO-0        400 ÷ 1,000 m3/h
    ROTO-5        700 ÷ 1,800 m3/h
    ROTO-10      1,000 ÷ 2,800 m3/h
    ROTO-20      2,000 ÷ 5,800 m3/h
    ROTO-30      4,000 ÷ 9,900 m3/h
    ROTO-40      7,500 ÷ 15,000 m3/h
    ROTO-50      10,500 ÷ 21,000 m3/h

Functions of OPTIMAX-ROTO air handling unit:

  • Air filtration

    • panel filters
    • bag filters

  • Heating

    • water heating coil
    • electric heater
    • DX heating coil (condenser)

  • Cooling

    • water cooling coil
    • DX cooling coil (evaporator)
    • DX cooling coil

  • Heat recovery

    • rotary heat exchanger

  • Air transfer

    • direct-driven fans with EC motors
    • direct-driven fans with AC motors

Applications

The OPTIMAX-ROTO compact air handling units are mainly used in:

  • industrial facilities
  • shopping centres
  • warehouses
  • hospitals
  • cinemas
  • educational facilities
  • swimming pools

More information on the product

  • Casing design of OPTIMAX-ROTO air handling units is based on a framework of aluminium profiles.
    The casing is composed of 50 mm thick double-skin panels filled with mineral wool. Inspection panels are hinged
    and closed by panel fasteners or handles. The roof version is additionally equipped with a roof and optionally with
    air intake and air extract cowl. The base frame for each size is constructed using steel profiles.

  • The parameters below are provided in accordance with EN 1886:

    – Mechanical Strength –class D1
    – Casing Air Leakage – class L1
    – Filter Bypass Leakage – F9
    – Thermal Transmission – class T3
    – Thermal Bridging Factor – TB1

  • Description of the air handling units components:

    1. Air intake cowl
    2. Intake shut-off damper
    3. Super fine bag filter
    4. Rotary heat exchanger
    5. Condensate drip tray for the heat exchanger
    6. Water or electric heater
    7. Supply air fans with AC or EC motors
    8. Flexible connectors
    9. Base-frame
    10. Control box
    11. 48 mm fine panel filter
    12. Exhaust fans with AC or EC motors
    13. Extract shut-off damper
    14. Air extract cowl
    15. Roof

    * Example configuration of the base section in the outdoor casing type.

  • CASING
  • CASING PARAMETERS
  • COMPONENTS

Controls for OPTIMAX-ROTO units

The use of Plug&Play control systems for air handling units provides comfort at the lowest possible running costs, as well as safety and monitoring of the operation of control devices against damage.

The purpose of such systems is to limit the human impact as much as possible to the direct operation of these systems, so that the operator role is only limited to setting the required parameters. The rest is provided by the automatic control system, which adapts to both indoor conditions and changing outdoor conditions.

Control components (sensors, pressure switches, …) and actuators (valves, actuators, …) cooperate with a freely programmable controller (equipped as standard with an open Modbus RTU communication protocol (RS-485) or optional: LON Works, BACnet IP, Ethernet, Modbus TCP / IP), which is configured based on the requirements of the client (project).

Read More

Product Selection Programs

PSP provide the correct selection of air handling units, display all necessary parameters, and allow you to print out a report summarising the selection. This solution offers customers a professional and comprehensive service that saves time. The programmes allow for the selection of nearly all of our products.

Go to PSP

Technical data

  • OPTIMAX-ROTO-0
  • OPTIMAX-ROTO-5
  • OPTIMAX-ROTO-10
  • OPTIMAX-ROTO-10-M
  • OPTIMAX-ROTO-20
  • OPTIMAX-ROTO-20-M
  • OPTIMAX-ROTO-30
  • OPTIMAX-ROTO-30-M
  • OPTIMAX-ROTO-40
  • OPTIMAX-ROTO-40-M
  • OPTIMAX-ROTO-50
  • OPTIMAX-ROTO-50-M

  • Dimensions

    OPTIMAX-ROTO-0
    Dimensions
    B
    [mm]    		 HB
    [mm]    		 LB
    [mm]    		 BW
    [mm]    		 HW
    [mm]    		 LC
    [mm]    		 LF
    [mm]    		 HP
    [mm]    		 LT
    [mm]
    		 LBM*
    [mm]
    700 700 1600 600 250 600 800 100 800 1600

    LBM* refers to the base section with mixing chamber. All dimensions are in [mm].
    The standard version of the AHU can be modified in terms of the materials used after consultation with our technical department.
    The extent of the modifications must be approved at the quotation stage.

  • Dimensions

    OPTIMAX-ROTO-5
    Dimensions
    B
    [mm]    		 HB
    [mm]    		 LB
    [mm]    		 BW
    [mm]    		 HW
    [mm]    		 LC
    [mm]    		 LF
    [mm]    		 HP
    [mm]    		 LT
    [mm]
    		 LBM*
    [mm]
    900 800 1600 800 300 600 800 100 800 1600

    LBM* refers to the base section with mixing chamber. All dimensions are in [mm].
    The standard version of the AHU can be modified in terms of the materials used after consultation with our technical department.
    The extent of the modifications must be approved at the quotation stage.

  • Dimensions

    OPTIMAX-ROTO-10
    Dimensions
    B
    [mm]    		 HB
    [mm]    		 LB
    [mm]    		 BW
    [mm]    		 HW
    [mm]    		 LC
    [mm]    		 LF
    [mm]    		 HP
    [mm]    		 LT
    [mm]
    		 LBM*
    [mm]
    900 900 1800 800 350 600 800 100 800 2000

    LBM* refers to the base section with mixing chamber. All dimensions are in [mm].
    The standard version of the AHU can be modified in terms of the materials used after consultation with our technical department.
    The extent of the modifications must be approved at the quotation stage.









  • Dimensions

    OPTIMAX-ROTO-10-M
    Dimensions
    B
    [mm]    		 HB
    [mm]    		 LB
    [mm]    		 BW
    [mm]    		 HW
    [mm]    		 LC
    [mm]    		 LF
    [mm]    		 HP
    [mm]    		 LT
    [mm]
    		 LBM*
    [mm]
    900 900 1800 800 350 600 800 100 800 2000

    LBM* refers to the base section with mixing chamber. All dimensions are in [mm].
    The standard version of the AHU can be modified in terms of the materials used after consultation with our technical department.
    The extent of the modifications must be approved at the quotation stage.

  • Dimensions

    OPTIMAX-ROTO-20
    Dimensions
    B
    [mm]    		 HB
    [mm]    		 LB
    [mm]    		 BW
    [mm]    		 HW
    [mm]    		 LC
    [mm]    		 LF
    [mm]    		 HP
    [mm]    		 LT
    [mm]
    		 LBM*
    [mm]
    1200 1200 1900 1100 500 600 800 100 800 2000

    LBM* refers to the base section with mixing chamber. All dimensions are in [mm].
    The standard version of the AHU can be modified in terms of the materials used after consultation with our technical department.
    The extent of the modifications must be approved at the quotation stage.

  • Dimensions

    OPTIMAX-ROTO-20-M
    Dimensions
    B
    [mm]    		 HB
    [mm]    		 LB
    [mm]    		 BW
    [mm]    		 HW
    [mm]    		 LC
    [mm]    		 LF
    [mm]    		 HP
    [mm]    		 LT
    [mm]
    		 LBM*
    [mm]
    1200 1200 1900 1100 500 600 800 100 800 2000

    LBM* refers to the base section with mixing chamber. All dimensions are in [mm].
    The standard version of the AHU can be modified in terms of the materials used after consultation with our technical department.
    The extent of the modifications must be approved at the quotation stage.

  • Dimensions

    OPTIMAX-ROTO-30
    Dimensions
    B
    [mm]    		 HB
    [mm]    		 LB
    [mm]    		 BW
    [mm]    		 HW
    [mm]    		 LC
    [mm]    		 LF
    [mm]    		 HP
    [mm]    		 LT
    [mm]
    		 LBM*
    [mm]
    1500 1500 2200 1400 650 600 800 100 800 2250

    LBM* refers to the base section with mixing chamber. All dimensions are in [mm].
    The standard version of the AHU can be modified in terms of the materials used after consultation with our technical department.
    The extent of the modifications must be approved at the quotation stage.

  • Dimensions

    OPTIMAX-ROTO-30-M
    Dimensions
    B
    [mm]    		 HB
    [mm]    		 LB
    [mm]    		 BW
    [mm]    		 HW
    [mm]    		 LC
    [mm]    		 LF
    [mm]    		 HP
    [mm]    		 LT
    [mm]
    		 LBM*
    [mm]
    1500 1500 2200 1400 650 600 800 100 800 2250

    LBM* refers to the base section with mixing chamber. All dimensions are in [mm].
    The standard version of the AHU can be modified in terms of the materials used after consultation with our technical department.
    The extent of the modifications must be approved at the quotation stage.

  • Dimensions

    OPTIMAX-ROTO-40
    Dimensions
    B
    [mm]    		 HB
    [mm]    		 LB
    [mm]    		 BW
    [mm]    		 HW
    [mm]    		 LC
    [mm]    		 LF
    [mm]    		 HP
    [mm]    		 LT
    [mm]
    		 LBM*
    [mm]
    1800 1800 2500 1700 800 600 800 120 800 2550

    LBM* refers to the base section with mixing chamber. All dimensions are in [mm].
    The standard version of the AHU can be modified in terms of the materials used after consultation with our technical department.
    The extent of the modifications must be approved at the quotation stage.

  • Dimensions

    OPTIMAX-ROTO-40-M
    Dimensions
    B
    [mm]    		 HB
    [mm]    		 LB
    [mm]    		 BW
    [mm]    		 HW
    [mm]    		 LC
    [mm]    		 LF
    [mm]    		 HP
    [mm]    		 LT
    [mm]
    		 LBM*
    [mm]
    1800 1800 2500 1700 800 600 800 120 800 2550

    LBM* refers to the base section with mixing chamber. All dimensions are in [mm].
    The standard version of the AHU can be modified in terms of the materials used after consultation with our technical department.
    The extent of the modifications must be approved at the quotation stage.

  • Dimensions

    OPTIMAX-ROTO-50
    Dimensions
    B
    [mm]    		 HB
    [mm]    		 LB
    [mm]    		 BW
    [mm]    		 HW
    [mm]    		 LC
    [mm]    		 LF
    [mm]    		 HP
    [mm]    		 LT
    [mm]
    		 LBM*
    [mm]
    2100 2100 2700 2000 950 600 800 120 800 2700

    LBM* refers to the base section with mixing chamber. All dimensions are in [mm].
    The standard version of the AHU can be modified in terms of the materials used after consultation with our technical department.
    The extent of the modifications must be approved at the quotation stage.

  • Dimensions

    OPTIMAX-ROTO-50-M
    Dimensions
    B
    [mm]    		 HB
    [mm]    		 LB
    [mm]    		 BW
    [mm]    		 HW
    [mm]    		 LC
    [mm]    		 LF
    [mm]    		 HP
    [mm]    		 LT
    [mm]
    		 LBM*
    [mm]
    2100 2100 2700 2000 950 600 800 120 800 2700

    LBM* refers to the base section with mixing chamber. All dimensions are in [mm].
    The standard version of the AHU can be modified in terms of the materials used after consultation with our technical department.
    The extent of the modifications must be approved at the quotation stage.
