Air curtains for doors and gates are used for protection against outdoor air intake at gates and  constructional holes and in doors  in  halls of industrial plants, storerooms, department stores  etc. .
They are fitted for deriving and heating air from outside a room. They may also be used without heating air as so called “cold” curtains.
The curtains are fitted for installation at gates at the height of 2÷6 m.
They may be positioned above gates or at the their sides.
Several curtains in a row may be used.

PRODUCT DESCRIPTION

The curtains consist of:

  • housing made of galvanized sheet (with possibility of painting) with intake crack along the whole length
  • water or heater electric heater (only sizes 01, 02)
  • axial-flow fans (2,3,4 or 5)

The curtains are offered in two variants A and B, with five sizes in each. Each size of a curtain is manufactured in several lengths. B variant with increased spacing of fans and with less quantity of air is meant for milder conditions of the curtain operation.

WORKING CONDITIONS

The curtains allow for air speed at the floor within the limits of 2,5 ÷ 6 m/s.
The water heaters are supplied with water with the temperature of 150OC or lower and the pressure of up to 1,5MPa.

Technical data

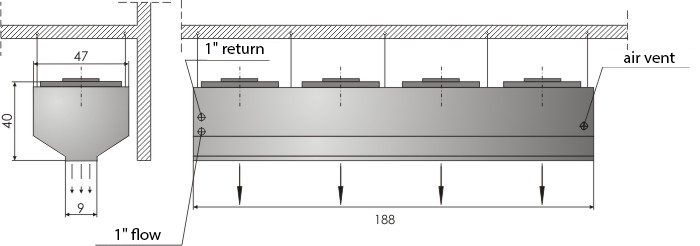

  • Dimensions

    Parameters of fan in curtain

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

    0,12

    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410



    Air flow of the curtain with the water heater

    Air flow [m3/h]

    2900

    Thermal power [kW], outflow air temperature [OC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp [OC]

    kW

    OC

    kPa

    90/70

    5

    15,2

    20

    2,1

    10

    13,7

    23

    1,8

    15

    12,3

    27

    1,4

    80/60

    5

    12,5

    17

    1,5

    10

    11,1

    21

    1,2

    15

    9,7

    24

    1,0

    70/50

    5

    10,0

    14

    1,1

    10

    8,5

    18

    0,9

    15

    7,4

    22

    0,7

    60/40

    5

    7,5

    12

    0,7

    10

    6,3

    16

    0,5

    15

    5,1

    20

    0,4



    Operational noise level [dB(A)]

    Noise level at distance of 3m

    60

    Curtain weight

    Weight [kg]

    47

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

    0,12

    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410





    Thermal power and air flow of the curtain with the electric heaters

    Air flow [m3/h]

    2900

    Thermal power levels [kW] 3 / 9 / 12



    Operational noise level [dB(A)]

    From distance of 1m

    60

    Curtain weight

    Weight [kg]

    47

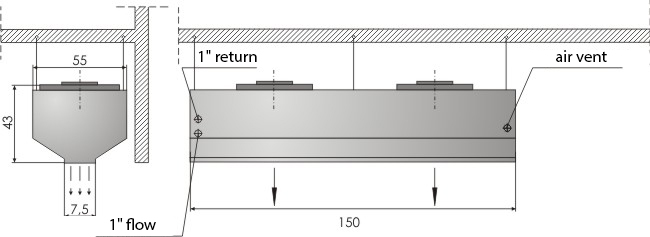

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

    0,12

    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410

    Air flow [m3/h]

    2900



    Operational noise level [dB(A)]

    From distance of 3m 60

    Curtain weight

    Weight [kg]

    47

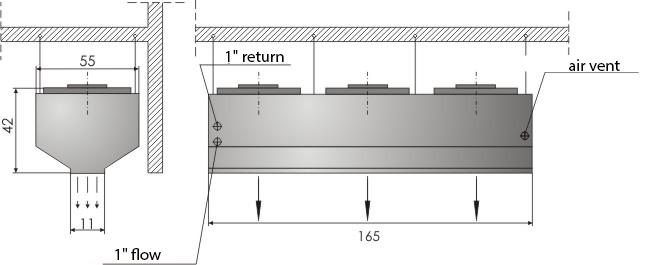

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

     0,12

    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    4350

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    23,0

    20

    2,1

    10

    21,1

    24

    1,8

    15

    18,4

    27

    1,4

    80/60

    5

    18,8

    17

    1,5

    10

    17,1

    21

    1,2

    15

    14,6

    24

    1,0

    70/50

    5

    14,9

    14

    1,1

    10

    13,2

    18

    0,9

    15

    11,1

    22

    0,7

    60/40

    5

    11,2

    12

    0,7

    10

    9,6

    16

    0,5

    15

    7,6

    20

    0,4



    Operational noise level [dB(A)]

    From distance of 3m

    60

    Curtain weight

    Weight [kg]

    68

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

    0,12

    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410



    Thermal power and air flow of the curtain with the electric heaters

    Air flow [m3/h]

    4350

    Thermal power levels [kW] 6 / 12 / 18



    Operational noise level [dB(A)]

    From distance of 3m

    60

    Curtain weight

    Weight [kg]

    68

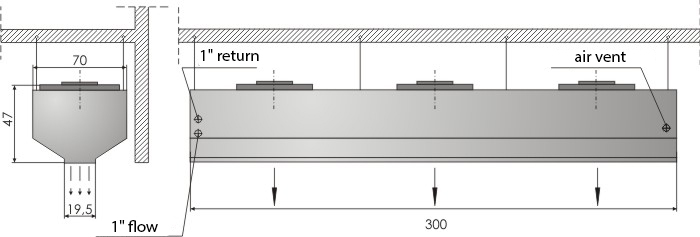

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

    0,12
    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410

    Air flow [m3/h]

    4350





    Operational noise level [dB(A)]

    From distance of 3m 60

    Curtain weight

    Weight [kg]

    68

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    4

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

    0,12

    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    5800

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    30,6

    20

    2,1

    10

    27,6

    23

    1,8

    15

    24,6

    27

    1,4

    80/60

    5

    25,1

    17

    1,5

    10

    22,3

    21

    1,2

    15

    19,5

    24

    1,0

    70/50

    5

    20,2

    14

    1,1

    10

    17,3

    18

    0,9

    15

    14,7

    22

    0,7

    60/40

    5

    15,0

    12

    0,7

    10

    12,6

    16

    0,5

    15

    10,2

    20

    0,4



    Operational noise level [dB(A)]

    From distance of 3m

    60

    Curtain weight

    Weight [kg]

    89

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    4

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

    0,12

    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410



    Thermal power and air flow of the curtain with the electric heaters

    Air flow [m3/h]

    5800

    Thermal power levels [kW] 12 / 18 / 24



    Operational noise level [dB(A)]

    From distance of 3m

    60

    Curtain weight

    Weight [kg]

    89

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    4

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

    0,12

    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410

    Air flow [m3/h]

    5800





    Operational noise level [dB(A)]

    From distance of 3m 60

    Curtain weight

    Weight [kg]

    89

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    5

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

    0,12

    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    7250

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    39,2

    20

    2,1

    10

    35,3

    23

    1,8

    15

    31,5

    27

    1,4

    80/60

    5

    32,2

    17

    1,5

    10

    28,5

    20

    1,2

    15

    25,1

    24

    1,0

    70/50

    5

    25,5

    14

    1,1

    10

    22,2

    18

    0,9

    15

    18,9

    22

    0,7

    60/40

    5

    19,3

    12

    0,7

    10

    16,1

    16

    0,5

    15

    13,2

    20

    0,4



    Operational noise level [dB(A)]

    From distance of 3m

    60

    Curtain weight

    Weight [kg]

    110

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    5

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

    0,12

    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410



    Thermal power and air flow of the curtain with the electric heaters

    Air flow [m3/h]

    7250

    Thermal power levels [kW] 12 / 24 / 30



    Operational noise level [dB(A)]

    From distance of 3m

    60

    Curtain weight

    Weight [kg]

    110

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    5

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

    0,12

    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410

    Air flow [m3/h]

    7250





    Operational noise level [dB(A)]

    From distance of 3m 60

    Curtain weight

    Weight [kg]

    110

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350



    Moce cieplne kurtyny z nagrzewnicą wodną

    Wydatek powietrza [m3/h]

    4000

    Moc cieplna [kW], temperatura powietrza wypływającego [oC]

    oraz opory przepływu wody [kPa]

    Parametry wody

    [OC]

    Temp. powietrza napływ. [OC]

    kW

    OC

    kPa

    90/70

    5

    26,1

    23

    6,0

    10

    23,5

    27

    4,8

    15

    21,0

    30

    4,0

    80/60

    5

    21,5

    20

    4,2

    10

    19,1

    23

    3,3

    15

    16,7

    27

    2,6

    70/50

    5

    17,2

    17

    2,8

    10

    14,8

    20

    2,2

    15

    12,6

    24

    1,8

    60/40

    5

    12,9

    14

    1,8

    10

    10,8

    17

    1,3

    15

    8,8

    21

    1,0



    Głośność pracy kurtyny [dB(A)]

    Głośność z odległości 3m

    62

    Masa kurtyny

    Masa [kg]

    59

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350



    Thermal power and air flow of the curtain with the electric heaters

    Air flow [m3/h]

    4000

    Thermal power levels [kW] 6 / 12 / 18



    Operational noise level [dB(A)]

    From distance of 3m

    62

    Curtain weight

    Weight [kg]

    59

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350

    Air flow [m3/h]

    4000





    Operational noise level [dB(A)]

    From distance of 3m  62

    Curtain weight

    Weight [kg]

    59

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    6000

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    39,3

    23

    6,0

    10

    35,4

    27

    4,8

    20

    31,6

    30

    4,0

    80/60

    5

    32,3

    20

    4,2

    10

    28,7

    23

    3,3

    15

    25,1

    27

    2,6

    70/50

    5

    25,7

    17

    2,8

    10

    22,3

    20

    2,2

    15

    19,0

    24

    1,8

    60/40

    5

    19,5

    14

    1,8

    10

    16,3

    17

    1,3

    15

    13,3

    21

    1,0



    Operational noise level [dB(A)]

    From distance of 3m

    61

    Curtain weight

    Weight [kg]

    59

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350



    Thermal power and air flow of the curtain with the electric heaters

    Air flow [m3/h]

    6000

    Thermal power levels [kW] 9 / 18 / 27



    Operational noise level [dB(A)]

    From distance of 3m

    62

    Curtain weight

    Weight [kg]

    84

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350

    Air flow [m3/h]

    6000





    Operational noise level [dB(A)]

    From distance of 3m 62

    Curtain weight

    Weight [kg]

    84

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    4

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    8000

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    52,4

    23

    6,0

    10

    47,2

    27

    4,8

    15

    42,2

    30

    4,0

    80/60

    5

    43,1

    20

    4,2

    10

    38,3

    23

    3,3

    15

    33,6

    27

    2,6

    70/50

    5

    34,3

    17

    2,8

    10

    29,8

    20

    2,2

    15

    25,5

    24

    1,8

    60/40

    5

    26,1

    14

    1,8

    10

    21,8

    17

    1,3

    15

    17,8

    21

    1,0



    Operational noise level [dB(A)]

    From distance of 3m

    62

    Curtain weight

    Weight [kg]

    111

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    4

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350





    Thermal power and air flow of the curtain with the electric heaters

    Air flow [m3/h]

    8000

    Thermal power levels [kW] 12 / 24 / 36



    Operational noise level [dB(A)]

    From distance of 3m

    62

    Curtain weight

    Weight [kg]

    111

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    4

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350

    Air flow [m3/h]

    8000





    Operational noise level [dB(A)]

    From distance of 3m  62

    Curtain weight

    Weight [kg]

    111

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    5

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    10000

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    65,5

    23

    6,0

    10

    59,1

    27

    4,8

    15

    52,8

    30

    4,0

    80/60

    5

    53,9

    20

    4,2

    10

    47,9

    23

    3,3

    15

    42,0

    27

    2,6

    70/50

    5

    42,9

    17

    2,8

    10

    37,3

    20

    2,2

    15

    31,8

    24

    1,8

    60/40

    5

    32,5

    14

    1,8

    10

    27,3

    17

    1,3

    15

    22,3

    21

    1,0



    Operational noise level [dB(A)]

    From distance of 3m

    62

    Curtain weight

    Weight [kg]

    137

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    5

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350



    Thermal power and air flow of the curtain with the electric heaters

    Air flow [m3/h]

    10000

    Thermal power levels [kW] 15 / 30 / 49



    Operational noise level [dB(A)]

    From distance of 3m

    62

    Curtain weight

    Weight [kg]

    137

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    5

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350

    Air flow [m3/h]

    10000





    Operational noise level [dB(A)]

    From distance of 3m  62

    Curtain weight

    Weight [kg]

    137

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,31

    0,28

    Current [A]

    1,35

     0,47

    Revolutions [rpm]

    1320

    1250



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    6500

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    31,5

    18

    1,0

    10

    28,2

    22

    0,9

    15

    25,5

    25

    0,8

    80/60

    5

    25,5

    16

    0,8

    10

    22,8

    20

    0,7

    15

    20,2

    24

    0,6

    70/50

    5

    20,3

    14

    0,6

    10

    17,7

    17

    0,4

    15

    15,3

    21

    0,3

    60/40

    5

    15,3

    11

    0,2

    10

    12,9

    15

    0,1

    15

    10,7

    19

    0,1



    Operational noise level [dB(A)]

    From distance of 5m

    60

    Curtain weight

    Weight [kg]

    102

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,31

    0,28

    Current [A]

    1,35

     0,47

    Revolutions [rpm]

    1320

    1250

    Air flow [m3/h]

    6500





    Operational noise level [dB(A)]

    From distance of 5m  60

    Curtain weight

    Weight [kg]

    102

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,31

    0,28

    Current [A]

    1,35

     0,47

    Revolutions [rpm]

    1320

    1250



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    9750

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    56,0

    21

    3,0

    10

    51,0

    22

    2,6

    15

    46,2

    28

    2,2

    80/60

    5

    46,4

    18

    2,2

    10

    41,5

    22

    1,8

    15

    36,7

    26

    1,4

    70/50

    5

    36,9

    15

    1,5

    10

    32,3

    19

    1,2

    15

    27,8

    23

    1,0

    60/40

    5

    27,9

    13

    1,0

    10

    23,6

    17

    0,8

    15

    19,5

    20

    0,6



    Operational noise level [dB(A)]

    From distance of 5m

    60

    Curtain weight

    Weight [kg]

    102

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,31

    0,28

    Current [A]

    1,35

     0,47

    Revolutions [rpm]

    1320

    1250

    Air flow [m3/h]

    9750





    Operational noise level [dB(A)]

    From distance of 5m  62

    Curtain weight

    Weight [kg]

    102

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    4

    Voltage [V]

    230

    400

    Motor power [kW]

    0,31

    0,28

    Current [A]

    1,35

     0,47

    Revolutions [rpm]

    1320

    1250



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    13000

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    84,8

    23

    7,5

    10

    77,1

    27

    6,8

    15

    69,5

    30

    6,0

    80/60

    5

    69,9

    20

    6,0

    10

    62,6

    23

    4,4

    15

    55,4

    27

    3,5

    70/50

    5

    55,7

    17

    3,5

    10

    48,7

    20

    3,0

    15

    42,0

    24

    2,3

    60/40

    5

    42,3

    14

    2,3

    10

    35,8

    18

    1,8

    15

    29,2

    21

    1,4



    Operational noise level [dB(A)]

    From distance of 5m

    60

    Curtain weight

    Weight [kg]

    132

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    4

    Voltage [V]

    230

    400

    Motor power [kW]

    0,31

    0,28

    Current [A]

    1,35

     0,47

    Revolutions [rpm]

    1320

    1250

    Air flow [m3/h]

    13000





    Operational noise level [dB(A)]

    From distance of 5m  60

    Curtain weight

    Weight [kg]

    132

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,61

    0,54

    Current [A]

    2,8

     1,05

    Revolutions [rpm]

    1310

    1360



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    11000

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    49,0

    17

    1,2

    10

    45,2

    21

    1,1

    15

    40,6

    25

    1,0

    80/60

    5

    40,8

    15

    1,0

    10

    36,5

    19

    0,9

    15

    32,3

    23

    0,8

    70/50

    5

    32,4

    13

    0,8

    10

    28,3

    17

    0,7

    15

    24,3

    21

    0,6

    60/40

    5

    24,5

    11

    0,6

    10

    20,6

    15

    0,5

    15

    17,0

    19

    0,4



    Operational noise level [dB(A)]

    From distance of 5m

    66

    Curtain weight

    Weight [kg]

    88

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,61

    0,54

    Current [A]

    2,8

     1,05

    Revolutions [rpm]

    1310

    1360

    Air flow [m3/h]

    11000





    Operational noise level [dB(A)]

    From distance of 5m  66

    Curtain weight

    Weight [kg]

    88

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,61

    0,54

    Current [A]

    2,8

     1,05

    Revolutions [rpm]

    1310

    1360



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    16500

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    89,6

    20

    5,0

    10

    81,4

    24

    4,3

    15

    73,3

    28

    3,2

    80/60

    5

    73,7

    17

    3,2

    10

    65,9

    21

    2,7

    15

    58,2

    25

    2,4

    70/50

    5

    58,5

    15

    2,4

    10

    51,2

    18

    1,9

    15

    44,1

    22

    1,5

    60/40

    5

    44,3

    12

    1,5

    10

    37,5

    16

    1,2

    15

    30,9

    20

    0,9



    Operational noise level [dB(A)]

    From distance of 5m

    66

    Curtain weight

    Weight [kg]

    129

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,61

    0,54

    Current [A]

    2,8

     1,05

    Revolutions [rpm]

    1310

    1360

    Air flow [m3/h]

    16500





    Operational noise level [dB(A)]

    From distance of 5m  66

    Curtain weight

    Weight [kg]

    129

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    4

    Voltage [V]

    230

    400

    Motor power [kW]

    0,61

    0,54

    Current [A]

    2,8

     1,05

    Revolutions [rpm]

    1310

    1360



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    22000

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    125,8

    21

    11,5

    10

    114,2

    24

    9,3

    15

    103,0

    28

    8,0

    80/60

    5

    103,0

    18

    8,0

    10

    92,6

    22

    7,6

    15

    81,8

    25

    5,5

    70/50

    5

    82,3

    15

    5,5

    10

    72,0

    19

    4,5

    15

    62,1

    23

    3,8

    60/40

    5

    62,4

    13

    3,9

    10

    52,7

    16

    2,6

    15

    43,5

    20

    2,0



    Operational noise level [dB(A)]

    From distance of 5m

    66

    Curtain weight

    Weight [kg]

    168

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    4

    Voltage [V]

    230

    400

    Motor power [kW]

    0,61

    0,54

    Current [A]

    2,8

     1,05

    Revolutions [rpm]

    1310

    1360

    Air flow [m3/h]

    22000





    Operational noise level [dB(A)]

    From distance of 5m  66

    Curtain weight

    Weight [kg]

    168

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,78

    0,79

    Current [A]

    3,4

    1,45

    Revolutions [rpm]

    1310

    1330



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    15600

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Parametry wody

    [OC]

    Temp. powietrza napływ. [OC]

    kW

    OC

    kPa

    90/70

    5

    64,2

    16

    2,2

    10

    58,2

    20

    1,8

    15

    52,4

    24

    1,5

    80/60

    5

    52,6

    14

    1,5

    10

    47,1

    18

    1,3

    15

    41,6

    22

    1,0

    70/50

    5

    41,7

    12

    1,0

    10

    36,4

    16

    0,9

    15

    31,4

    20

    0,8

    60/40

    5

    31,5

    10

    0,8

    10

    26,6

    14

    0,6

    15

    21,9

    19

    0,5



    Operational noise level [dB(A)]

    From distance of 5m

    67

    Curtain weight

    Weight [kg]

    105

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,78

    0,79

    Current [A]

    3,4

     1,45

    Revolutions [rpm]

    1310

    1330

    Air flow [m3/h]

    15600





    Operational noise level [dB(A)]

    From distance of 5m  67

    Curtain weight

    Weight [kg]

    105

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,78

    0,79

    Current [A]

    3,4

    1,45

    Revolutions [rpm]

    1310

    1330



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    23200

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    115,0

    19

    8,0

    10

    104,6

    23

    6,1

    15

    94,2

    27

    5,3

    80/60

    5

    94,6

    16

    5,2

    10

    84,6

    20

    4,3

    15

    74,8

    24

    3,3

    70/50

    5

    75,1

    14

    3,1

    10

    65,7

    18

    2,7

    15

    56,6

    22

    2,2

    60/40

    5

    56,8

    12

    2,2

    10

    48,0

    16

    1,6

    15

    39,6

    20

    1,2



    Operational noise level [dB(A)]

    From distance of 5m

    67

    Curtain weight

    Weight [kg]

    151

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,78

    0,79

    Current [A]

    3,4

     1,45

    Revolutions [rpm]

    1310

    1330

    Air flow [m3/h]

    23200





    Operational noise level [dB(A)]

    From distance of 5m  67

    Curtain weight

    Weight [kg]

    151

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    4

    Voltage [V]

    230

    400

    Motor power [kW]

    0,78

    0,79

    Current [A]

    3,4

    1,45

    Revolutions [rpm]

    1310

    1330



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    31200

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    173,9

    20

    19,5

    10

    158,0

    24

    16,0

    15

    142,2

    28

    13,5

    80/60

    5

    143,1

    18

    13,4

    10

    127,9

    21

    11,8

    15

    113,2

    25

    9,1

    70/50

    5

    113,0

    15

    9,0

    10

    99,6

    19

    8,4

    15

    85,7

    23

    6,5

    60/40

    5

    86,2

    13

    6,4

    10

    72,9

    16

    4,3

    15

    60,1

    20

    3,4



    Operational noise level [dB(A)]

    From distance of 5m

    67

    Curtain weight

    Weight [kg]

    199

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    4

    Voltage [V]

    230

    400

    Motor power [kW]

    0,78

    0,79

    Current [A]

    3,4

     1,45

    Revolutions [rpm]

    1310

    1330

    Air flow [m3/h]

    31200





    Operational noise level [dB(A)]

    From distance of 5m  67

    Curtain weight

    Weight [kg]

    199

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

    0,12

    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    2900

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    23,0

    27

    3,8

    10

    20,8

    30

    3,0

    15

    18,5

    33

    2,5

    80/60

    5

    19,1

    23

    2,6

    10

    16,9

    26

    2,0

    15

    14,8

    30

    1,7

    70/50

    5

    15,1

    19

    1,7

    10

    13,2

    23

    1,4

    15

    11,2

    26

    1,2

    60/40

    5

    11,5

    16

    1,3

    10

    9,6

    19

    0,8

    15

    7,9

    23

    0,6



    Operational noise level [dB(A)]

    From distance of 3m

    60

    Curtain weight

    Weight [kg]

    65

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

    0,12

    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410



    Thermal power and air flow of the curtain with the electric heaters

    Air flow [m3/h]

    2900

    Thermal power levels [kW] 3 / 9 / 12



    Operational noise level [dB(A)]

    From distance of 3m

    60

    Curtain weight

    Weight [kg]

    65

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    4

    Voltage [V]

    230

    400

    Motor power [kW]

    0,13

    0,12

    Current [A]

    0,59

     0,29

    Revolutions [rpm]

    1400

    1410

    Air flow [m3/h]

    2900





    Operational noise level [dB(A)]

    From distance of 3m 60

    Curtain weight

    Weight [kg]

    150

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    4000

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    33,0

    28

    7,5

    10

    29,8

    31

    5,5

    15

    26,6

    34

    5,0

    80/60

    5

    27,2

    24

    5,0

    10

    24,2

    27

    4,2

    15

    21,3

    30

    3,5

    70/50

    5

    21,7

    20

    3,6

    10

    18,9

    23

    2,8

    15

    16,2

    26

    2,1

    60/40

    5

    16,5

    16

    2,2

    10

    13,9

    20

    1,8

    15

    11,4

    23

    1,3



    Operational noise level [dB(A)]

    From distance of 3m

    62

    Curtain weight

    Weight [kg]

    73

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350



    Thermal power and air flow of the curtain with the electric heaters

    Air flow [m3/h]

    4000

    Thermal power levels [kW] 6 / 12 / 18



    Operational noise level [dB(A)]

    From distance of 3m

    62

    Curtain weight

    Weight [kg]

    73

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,20

    0,18

    Current [A]

    0,9

     0,33

    Revolutions [rpm]

    1400

    1350

    Air flow [m3/h]

    4000





    Operational noise level [dB(A)]

    From distance of 3m  62

    Curtain weight

    Weight [kg]

    73

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,31

    0,28

    Current [A]

    1,35

     0,47

    Revolutions [rpm]

    1320

    1250



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    6500

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    49,2

    26

    2,7

    10

    44,7

    29

    2,3

    15

    40,3

    33

    1,9

    80/60

    5

    40,6

    22

    1,9

    10

    36,4

    26

    1,6

    15

    32,2

    29

    1,3

    70/50

    5

    32,4

    19

    1,3

    10

    28,4

    22

    1,0

    15

    24,5

    26

    0,8

    60/40

    5

    24,7

    15

    0,8

    10

    20,9

    19

    0,6

    15

    17,3

    22

    0,5



    Operational noise level [dB(A)]

    From distance of 5m

    60

    Curtain weight

    Weight [kg]

    102

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,31

    0,28

    Current [A]

    1,35

     0,47

    Revolutions [rpm]

    1320

    1250

    Air flow [m3/h]

    6500





    Operational noise level [dB(A)]

    From distance of 5m  60

    Curtain weight

    Weight [kg]

    102

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,31

    0,28

    Current [A]

    1,35

     0,47

    Revolutions [rpm]

    1320

    1250



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    9750

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    86,0

    28

    9,0

    10

    78,3

    33

    8,0

    15

    70,7

    36

    6,5

    80/60

    5

    71,3

    25

    6,5

    10

    63,9

    28

    5,3

    15

    56,6

    32

    4,8

    70/50

    5

    57,7

    21

    4,6

    10

    50,0

    24

    4,0

    15

    43,2

    28

    2,9

    60/40

    5

    43,5

    17

    2,9

    10

    36,2

    20

    9,3

    15

    36,0

    24

    1,8



    Operational noise level [dB(A)]

    From distance of 5m

    60

    Curtain weight

    Weight [kg]

    149

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,31

    0,28

    Current [A]

    1,35

     0,47

    Revolutions [rpm]

    1320

    1250

    Air flow [m3/h]

    9750





    Operational noise level [dB(A)]

    From distance of 1m  60

    Curtain weight

    Weight [kg]

    149

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,61

    0,54

    Current [A]

    2,8

     1,05

    Revolutions [rpm]

    1310

    1360



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    11000

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    73,2

    23

    3,2

    10

    66,5

    27

    2,8

    15

    60,0

    31

    2,4

    80/60

    5

    60,4

    20

    2,5

    10

    54,0

    24

    2,2

    15

    47,8

    27

    1,7

    70/50

    5

    48,1

    17

    1,7

    10

    42,1

    21

    1,3

    15

    36,3

    24

    1,0

    60/40

    5

    36,5

    14

    1,0

    10

    30,9

    18

    0,9

    15

    25,5

    21

    0,8



    Operational noise level [dB(A)]

    From distance of 5m

    66

    Curtain weight

    Weight [kg]

    117

  • Dimensions

    Parameters of fans in curtain

    Number of fans

    2

    Voltage [V]

    230

    400

    Motor power [kW]

    0,61

    0,54

    Current [A]

    2,8

     1,05

    Revolutions [rpm]

    1310

    1360

    Air flow [m3/h]

    11000





    Operational noise level [dB(A)]

    From distance of 5m  66

    Curtain weight

    Weight [kg]

    117

  • Dimensions

    Parameters of fans in curtains

    Number of fans

    3

    Voltage [V]

    230

    400

    Motor power [kW]

    0,61

    0,54

    Current [A]

    2,8

     1,05

    Revolutions [rpm]

    1310

    1360



    Air flow of the curtains with the water heater

    Air flow  [m3/h]

    16500

    Thermal power [kW], outflow air temperature [oC]
    and resistance of water flow [kPa]

    Water temp.

    [OC]

    Inflow air temp. [OC]

    kW

    OC

    kPa

    90/70

    5

    128,8

    27

    14,0

    10

    117,1
